Sme S12r-Pta-C 1000kw 1250kva SDEC Diesel Powered Generator

Product Categories

Foshan Yingli Gensets Co., Ltd.

Contact Now

Name: Sme S12rPtaC 1000kw 1250kva SDEC Diesel Powered Generator
Brand: YLFDJ
Price: 113 USD

Place of Origin : China

Brand Name : YLFDJ

Model Number : YLGF-1000SM

Packaging Details : Packing: foam and PE films.

Supply Ability : 500 Set/Sets per Month

Price : $113,900.00/sets 1-2 sets

Certification : ISO CE

MOQ : 1

Warranty : 1000 working hour -1year

Rated Voltage : 220V, 230V, 380v, 400V

Rated Current : 1800

Speed : 1500RPM, 1800RPM

Frequency : 50Hz

Starting system : Auto Start, Remote Start, 24V DC Electric Start

Type : Open Frame, OpenType

Weight : 5350KG

Cooling System Type : Water cooling system

Alternator brand : Faraday

Engine Brand : SME

Product Name : YLGF-1000SM

Controller : Smartgen

Engine Model : S12R-PTA-C

Cooling system : Closed Water-cooling System

Phase : 3-phase 4-wire

Rated Power : 1000kw 1250kva

Engine type : 4-cycle Water-cooled Diesel Engine

Port : FOSHAN / GUANGZHOU / SHENZHEN

Contact Now

SME Diesel Electric Generator 1000kw 1250kva S12R - PTA - C Shangchai SDEC Power Generator Genset

Product Description

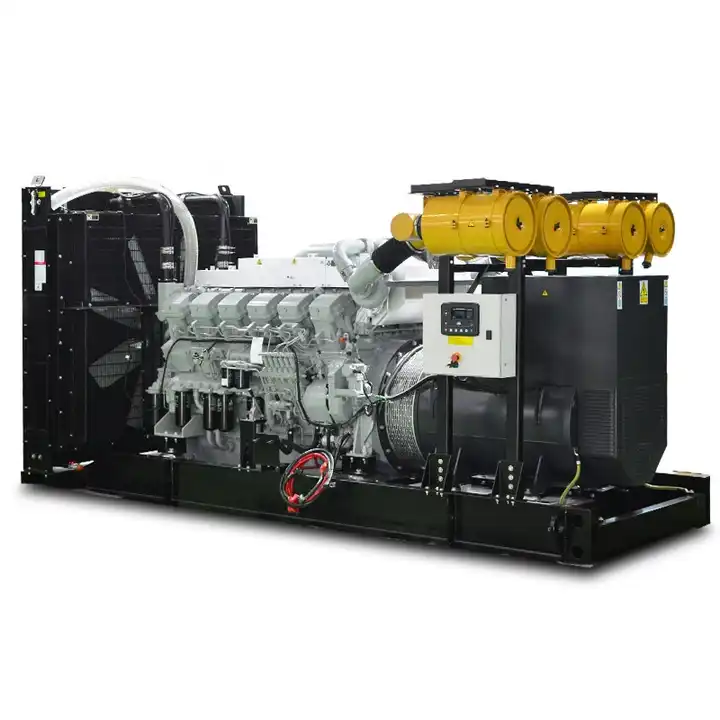

Sme S12r-Pta-C 1000kw 1250kva SDEC Diesel Powered Generator

	Genset Model	YLGF-1000SM
Genset	Power Capacity (kw/kva)	1000/1250

	Rated Voltage (V)	400/230/110
	Rated Current (A)	1800
	Rated Frequency (Hz)	50/60
	Rated Speed (rpm)	1500
	Power Factor / Phase	Cos 0.8 Lagging, 3 phase
	Cooling System	Closed cycle water-cooled with fan,water tank
	Overall Dimension (L×W×H) (mm)	252214351595
	Gross Weight (kg)	5350
	Engine Brand	SME
Diesel Engine	Engine Model	S12R-PTA-C
	Prime Power (kw)	1080/1190
	Engine Structure	12 Cylinder,Vertical,Inline,4 stroke

	Bore×Stroke (mm)	170*180
	Displacement (L)	49.03
	Compression Ratio	14:1
	Lube Capacity (L)	180
	Fuel System	PT type fuel injection pump
	Fuel Consumption (L/h)	235
	Oil Consumption (g/kw.h)	0.4
	Rotating Speed (rpm)	1500
	Speed Governing	electric speed governor
	Starting Method	By 24V batteries
	Alternator Brand	Faraday
Alternator	Alternator Model	FD6E-4
	Insulation Class	Class H
	Steady Voltage Regulation	≤ +/- 0.5%
	Instant Voltage Ragulation	-15%~+20%
	Voltage Fluctuation Rate	≤ +/- 0.5%
	Steady Frequency Regulation	≤ +/- 0.5%
	Instant Frequency Ragulation	-7%~+10%
	Phase/Connection Type	3 phase 4 wire/Y type
Controller	Controller Brand	HGM6120CAN
