Name: SME Diesel Electric Generator 1500kw 1875kva S16R PTA2 C Shang chai SDEC Power Generator Genset
Brand: YLFDJ
Price: 168 USD

Place of Origin : China

Brand Name : YLFDJ

Model Number : YLGF-1500SM

Packaging Details : Packing: foam and PE films.

Supply Ability : 500 Set/Sets per Month

Price : $168,900.00/sets 1-2 sets

Certification : ISO CE

MOQ : 1

Warranty : 1000 working hour -1year

Rated Voltage : 220V, 230V, 380v, 400V

Rated Current : 2700

Speed : 1500RPM, 1800RPM

Frequency : 50Hz

Starting system : Auto Start, Remote Start, 24V DC Electric Start

Type : Open Frame, OpenType

Weight : 6800KG

Cooling System Type : Water cooling system

Alternator brand : Faraday

Engine Brand : SME

Product Name : YLGF-1500SM

Controller : Smartgen

Engine Model : S16R-PTA2-C

Cooling system : Closed Water-cooling System

Phase : 3-phase 4-wire

Rated Power : 1500kw 1875kva

Engine type : 4-cycle Water-cooled Diesel Engine

Port : FOSHAN / GUANGZHOU / SHENZHEN

Contact Now

Product Description

SME Diesel Electric Generator 1500kw 1875kva S16R - PTA2 - C Shang chai SDEC Power Generator Genset

	Genset Model	YLGF-1500SM
Genset	Power Capacity (kw/kva)	1500/1875

	Rated Voltage (V)	400/230/110
	Rated Current (A)	2700
	Rated Frequency (Hz)	50/60
	Rated Speed (rpm)	1500
	Power Factor / Phase	Cos 0.8 Lagging, 3 phase
	Cooling System	Closed cycle water-cooled with fan,water tank
	Overall Dimension (L×W×H) (mm)	307714351810
	Gross Weight (kg)	6800
	Engine Brand	SME
Diesel Engine	Engine Model	S16R-PTA2-C
	Prime Power (kw)	1600/1760
	Engine Structure	16 Cylinder,Vertical,Inline,4 stroke

	Bore×Stroke (mm)	170*180
	Displacement (L)	65.37
	Compression Ratio	13.5:1
	Lube Capacity (L)	230
	Fuel System	PT type fuel injection pump
	Fuel Consumption (L/h)	388
	Lube Consumption (g/kw.h)	0.4
	Rotating Speed (rpm)	1500
	Speed Governing	electric speed governor
	Starting Method	By 24V batteries
	Alternator Brand	Faraday
Alternator	Alternator Model	FD7D-4
	Insulation Class	Class H
	Steady Voltage Regulation	≤ +/- 0.5%
	Instant Voltage Ragulation	-15%~+20%
	Voltage Fluctuation Rate	≤ +/- 0.5%
	Steady Frequency Regulation	≤ +/- 0.5%
	Instant Frequency Ragulation	-7%~+10%
	Phase/Connection Type	3 phase 4 wire/Y type
Controller	Controller Brand	HGM6120CAN

Packaging & Shipping

Packing: foam and PE films SME Diesel Electric Generator 1500kw 1875kva S16R - PTA2 - C Shang chai SDEC Power Generator Genset

Our Services

SME Diesel Electric Generator 1500kw 1875kva S16R - PTA2 - C Shang chai SDEC Power Generator Genset

FAQ

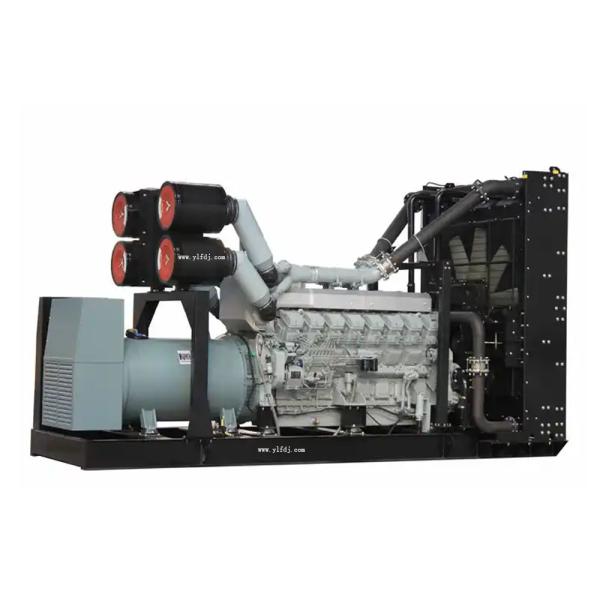

SME Diesel Electric Generator 1500kw 1875kva S16R - PTA2 - C Shang chai SDEC Power Generator Genset Images
